Observations#

The Observation class is the container for the data acquired by the telescope during a scanning period (and the relevant information about it).

Serial applications#

In a serial code Observation is equivalent to an empty class in which you can put anything:

import litebird_sim as lbs
import numpy as np

obs = lbs.Observation(
    detectors=2,
    start_time_global=0.0,
    sampling_rate_hz=5.0,
    n_samples_global=5,
)

obs.my_new_attr = 'value'
setattr(obs, 'another_new_attr', 'another value')

Across the framework, the coherence in the names and content of the attributes is guaranteed by convention (no check is done by the Observation class). At the moment, the most common field that you can find in the class are the following, assuming that it is meant to collect \(N\) samples for \(n_d\) detectors:

  1. Observation.tod is initialized when you call Simulation.create_observations(). It’s a 2D array of shape \((n_d, N)\). This means that Observation.tod[0] is the time stream of the first detector, and obs.tod[:, 0] are the first time samples of all the detectors.

    You can create other TOD-like arrays through the parameter tods; it accepts a list of TodDescription objects that specify the name of the field used to store the 2D array, the physical units of the TOD expressed as an item of :class:.Units (e.g. Units.K_CMB); a textual description, and the value for dtype. (By default, the tod field uses 32-bit floating-point numbers.) Here is an example:

    sim.create_observations(
    detectors=[det1, det2, det3],
    tods=[
        lbs.TodDescription(
            name="tod",
            units=Units.K_CMB,
            description="TOD",
            dtype=np.float64,
        ),
        lbs.TodDescription(
            name="noise",
            units=Units.K_CMB,
            description="1/f+white noise",
            dtype=np.float32
        ),
    ],
)

for cur_obs in sim.observations:
    print("Shape of 'tod': ", cur_obs.tod.shape)
    print("Shape of 'noise': ", cur_obs.noise.shape)

    The default TOD named “tod” uses units Units.K_CMB and 32-bit floating-point numbers (numpy.float32), which are adequate for most LiteBIRD simulations.

    The parameter allocate_tod controls whether these TOD arrays are effectivelly allocated or not. By default TODs are allocated, but in some special situations, e.g. you need just to deal with pointing, you can set it to False and save memory.

  2. If you called prepare_pointings() and then precompute_pointings(), the field Observation.pointing_matrix is a \((n_d, N, 3)\) matrix containing the pointing information in Ecliptic coordinates for each detector: colatitude θ, longitude φ, orientation ψ. If you specified a HWP in the call to prepare_pointings(), the field Observation.hwp_angle will be a \((N,)\) vector containing the angle of the HWP in radians.

  3. Observation.local_flags is a \((n_d, N)\) matrix containing flags for the \(n_d\) detectors. These flags are typically associated to peculiarities in the single detectors, like saturations or mis-calibrations.

  4. Observation.global_flags is a vector of \(N\) elements containing flags that must be associated with all the detectors in the observation.

Keep in mind that the general rule is that detector-specific attributes are collected in arrays. Thus, obs.calibration_factors should be a 1-D array of \(n_d\) elements (one per each detector).

With this memory layout, typical operations look like this:

# Collect detector properties in arrays
obs.calibration_factors = np.array([1.1, 1.2])
obs.wn_levels = np.array([2.1, 2.2])

# Apply to each detector its own calibration factor
obs.tod *=  obs.calibration_factors[:, None]

# Add white noise at a different level for each detector
obs.tod += (np.random.normal(size=obs.tod.shape)
            * obs.wn_levels[:, None])

Parallel applications#

The Observation class allows the distribution of obs.tod over multiple MPI processes to enable the parallelization of computations. The distribution of obs.tod can be achieved in two different ways:

1. Uniform distribution of detectors along the detector axis#

With n_blocks_det and n_blocks_time arguments of Observation class, the obs.tod is evenly distributed over a n_blocks_det by n_blocks_time grid of MPI ranks. The blocks can be changed at run-time.

The coherence between the serial and parallel operations is achieved by distributing also the arrays of detector properties: each rank keeps in memory only an interval of calibration_factors or wn_levels, the same detector interval of tod.

The main advantage is that the example operations in the Serial section are achieved with the same lines of code. The price to pay is that you have to set detector properties with special methods.

import litebird_sim as lbs
from mpi4py import MPI

comm = MPI.COMM_WORLD

obs = lbs.Observation(
    detectors=2,
    start_time_global=0.0,
    sampling_rate_hz=5.0,
    n_samples_global=5,
    n_blocks_det=2, # Split the detector axis in 2
    comm=comm  # across the processes of this communicator
)

# Add detector properties either with a global array that contains
# all the detectors (which will be scattered across the processor grid)
obs.setattr_det_global('calibration_factors', np.array([1.1, 1.2]))

# Or with the local array, if somehow you have it already
if comm.rank == 0:
    wn_level_local = np.array([2.1])
elif comm.rank == 1:
    wn_level_local = np.array([2.2])
else:
    wn_level_local = np.array([])
obs.setattr_det('wn_levels', wn_level_local)

# Operate on the local portion of the data just like in serial code

# Apply to each detector its own calibration factor
obs.tod *=  obs.calibration_factors[:, None]

# Add white noise at a different level for each detector
obs.tod += (np.random.normal(size=obs.tod.shape)
            * obs.wn_levels[:, None])

# Change the data distribution
obs.set_blocks(n_blocks_det=1, n_blocks_time=1)
# Now the rank 0 has exactly the data of the serial obs object

For clarity, here is a visualization of how data (a detector attribute and the TOD) gets distributed.

_images/observation_data_distribution.png

2. Custom grouping of detectors along the detector axis#

While uniform distribution of detectors along the detector axis optimizes load balancing, it is less suitable for simulating some effects, like crosstalk and noise correlation between the detectors. For these effects, uniform distribution across MPI processes necessitates the transfer of large TOD arrays across multiple MPI processes, which complicates the code implementation and may potentially lead to significant performance overhead. To save us from this situation, the Observation class accepts an argument det_blocks_attributes that is a list of string objects specifying the detector attributes to create the group of detectors. Once the detector groups are made, the detectors are distributed to the MPI processes in such a way that all the detectors of a group reside on the same set of MPI processes.

If a valid det_blocks_attributes argument is passed to the Observation class, the arguments n_blocks_det and n_blocks_time are ignored. Since the det_blocks_attributes creates the detector blocks dynamically, the n_blocks_time is computed during runtime using the size of MPI communicator and the number of detector blocks (n_blocks_time = comm.size // n_blocks_det).

The detector blocks made in this way can be accessed with Observation.detector_blocks. It is a dictionary object that has the tuple of det_blocks_attributes values as dictionary keys and the list of detectors corresponding to the key as dictionary values. This dictionary is sorted so that the group with the largest number of detectors comes first and the one with the fewest detectors comes last.

The following example illustrates the distribution of obs.tod matrix across the MPI processes when det_blocks_attributes is specified.

import litebird_sim as lbs

comm = lbs.MPI_COMM_WORLD

start_time = 456
duration_s = 100
sampling_freq_Hz = 1

# Creating a list of detectors.
dets = [
    lbs.DetectorInfo(
        name="channel1_w9_detA",
        wafer="wafer_9",
        channel="channel1",
        sampling_rate_hz=sampling_freq_Hz,
    ),
    lbs.DetectorInfo(
        name="channel1_w3_detB",
        wafer="wafer_3",
        channel="channel1",
        sampling_rate_hz=sampling_freq_Hz,
    ),
    lbs.DetectorInfo(
        name="channel1_w1_detC",
        wafer="wafer_1",
        channel="channel1",
        sampling_rate_hz=sampling_freq_Hz,
    ),
    lbs.DetectorInfo(
        name="channel1_w1_detD",
        wafer="wafer_1",
        channel="channel1",
        sampling_rate_hz=sampling_freq_Hz,
    ),
    lbs.DetectorInfo(
        name="channel2_w4_detA",
        wafer="wafer_4",
        channel="channel2",
        sampling_rate_hz=sampling_freq_Hz,
    ),
    lbs.DetectorInfo(
        name="channel2_w4_detB",
        wafer="wafer_4",
        channel="channel2",
        sampling_rate_hz=sampling_freq_Hz,
    ),
]

# Initializing a simulation
sim = lbs.Simulation(
    start_time=start_time,
    duration_s=duration_s,
    random_seed=12345,
    mpi_comm=comm,
)

# Creating the observations with detector blocks
sim.create_observations(
    detectors=dets,
    split_list_over_processes=False,
    num_of_obs_per_detector=3,
    det_blocks_attributes=["channel"], # case 1 and 2
    # det_blocks_attributes=["channel", "wafer"] # case 3
)

With the list of detectors defined in the code snippet above, we can see how the detectors axis and time axis is divided depending on the size of MPI communicator and det_blocks_attributes.

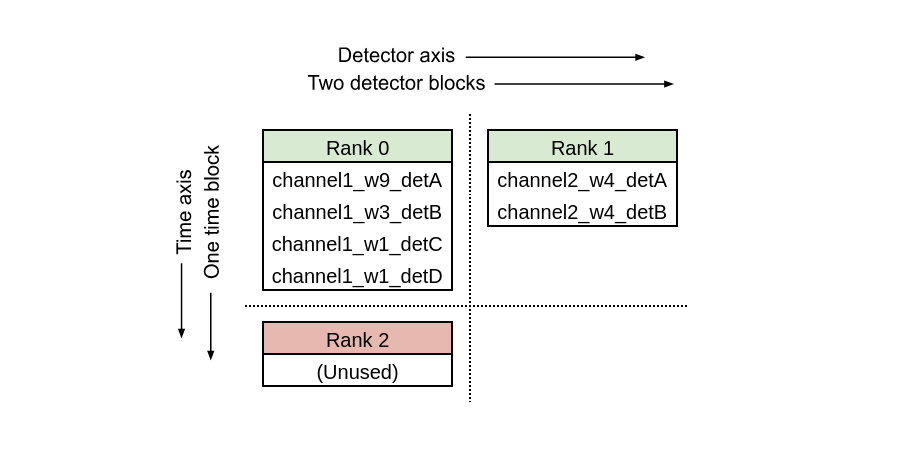

Case 1

Size of global MPI communicator = 3, det_blocks_attributes=["channel"]

_images/detector_groups_case1.png

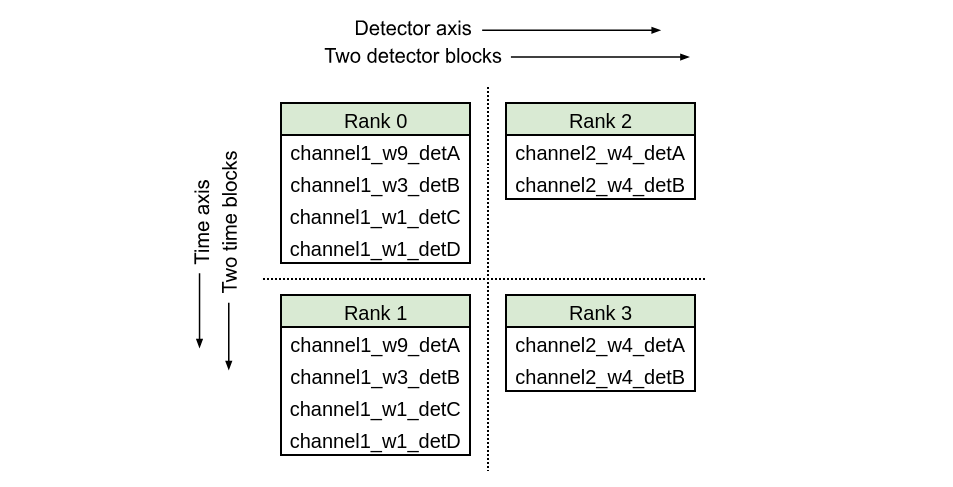

Case 2

Size of global MPI communicator = 4, det_blocks_attributes=["channel"]

_images/detector_groups_case2.png

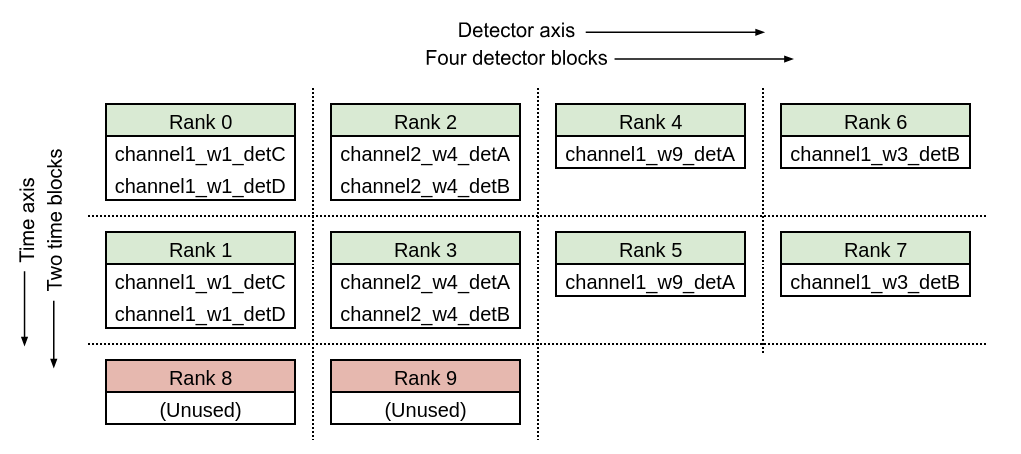

Case 3

Size of global MPI communicator = 10, det_blocks_attributes=["channel", "wafer"]

_images/detector_groups_case3.png

Note

When n_blocks_det != 1, keep in mind that obs.tod[0] or obs.wn_levels[0] are quantities of the first local detector, not global. This should not be a problem as the only thing that matters is that the two quantities refer to the same detector. If you need the global detector index, you can get it with obs.det_idx[0], which is created at construction time. obs.det_idx stores the detector indices of the detectors available to an Observation class, with respect to the list of detectors stored in obs.detectors_global variable.

Note

To get a better understanding of how observations are being used in a MPI simulation, use the method Simulation.describe_mpi_distribution(). This method must be called after the observations have been allocated using Simulation.create_observations(); it will return an instance of the class MpiDistributionDescr, which can be inspected to determine which detectors and time spans are covered by each observation in all the MPI processes that are being used. For more information, refer to the Section Simulations.

MPI communicators#

The simulation framework exposes MPI communicators at different levels. The first one is the global MPI communicator. It can be accessed with a global variable MPI_COMM_WORLD, and it is same as mpi4py.MPI.COMM_WORLD. It contains all the MPI processes used by the script. The other MPI communicators defined in the simulation framework are the partitions of global MPI communicator and they contain the MPI processes that have certain properties as we explain below. For all the examples in this sub-section, we consider the distribution of TODs across 10 MPI processes with n_blocks_time = 2 and n_blocks_det = 4.

To distribute the TODs across n_blocks_det \(\times\) n_blocks_time \(=\, N\) MPI ranks, it is necessary that the script is executed with at least \(N\) MPI processes. There is, however, no upper limit on the number of MPI processes to be used. When the number of MPI processes is higher than \(N\), it leaves all the MPI processes with rank \(\geq N\) with no detector (and TOD). In many cases, it is useful to identify the unused ranks so that they can be avoided while performing some computations. The Observation class makes this happen by making a sub-communicator containing only the processes that contain a non-zero number of detectors (and TODs).

However, once the detectors and TODs are distributed across several processes, it is not trivial to find out all the ranks that contain the TOD chunks of a given detector (or detector block). Likewise, it is hard to find all the ranks that contain the TOD chunks corresponding to the same time interval. To solve this issue, Observation class provides the MPI sub-communicators corresponding to different groups of MPI processes.

The three sub-communicators provided by the framework - each generated by splitting the global MPI communicator - are listed below. The process ranks in the sub-communicators are based on the order of their global ranks:

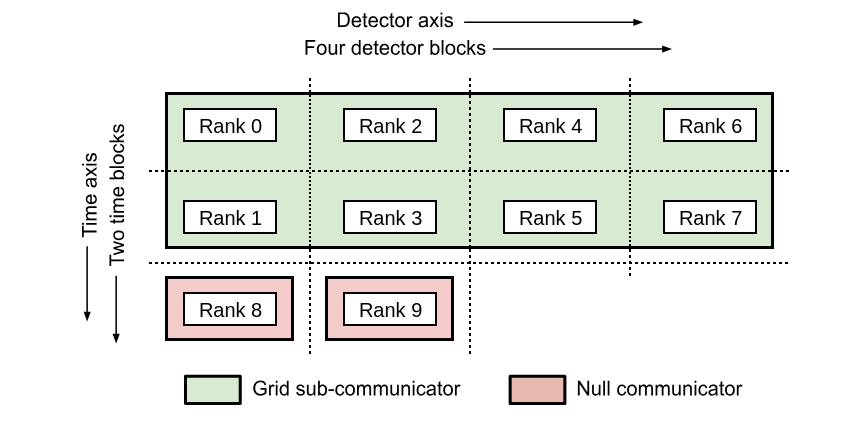

  • Grid communicator: Once the number of detector blocks and the number of time blocks are available, the Observation class splits the global communicator into a grid communicator and a null communicator. Grid communicator consist all the mpi processes whose rank is less than \(N\). The null communicator contains all other MPI processes. On the MPI processes with global rank less than \(N\), the global variable MPI_COMM_GRID.COMM_OBS_GRID points to the grid communicator. On other MPI processes, it points to the null MPI communicator (MPI_COMM_GRID.COMM_NULL which is same as mpi4py.MPI.COMM_NULL). In the example below, the processes with global rank from 0 to 7 belong to the grid sub-communicator. Since the processes with rank 8 and 9 are unused, they are excluded from the grid communicator.

    _images/grid_communicator.png

    Note that, to exclude the MPI processes belonging to the null communicator from the computations, one should enclose the computations under an if condition comparing MPI_COMM_GRID.COMM_OBS_GRID against MPI_COMM_GRID.COMM_NULL:

    if MPI_COMM_GRID.COMM_OBS_GRID != MPI_COMM_GRID.COMM_NULL:
    # proceed with the following computations when
    # MPI_COMM_GRID.COMM_OBS_GRID is not null
    ...

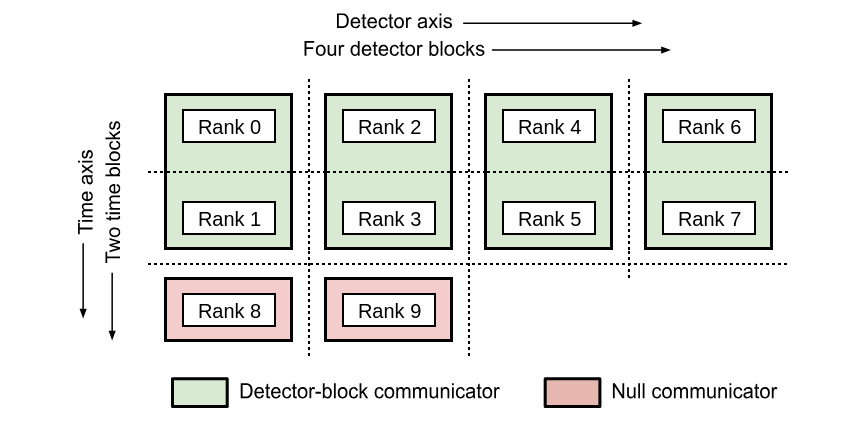

  • Detector-block communicator: The detector-block communicator is made by splitting the grid communicator into n_blocks_det sub-communicators, such that each sub-communicator contains the processes where TODs of the same set of detectors reside. This sub-communicator can be accessed with comm_det_blocks attribute of the Observation class. In the following example, the grid communicator is split into 4 detector-block communicators containing the processes with global rank 0-1, 2-3, 4-5, and 6-7 respectively.

    _images/detector_block_communicator.png

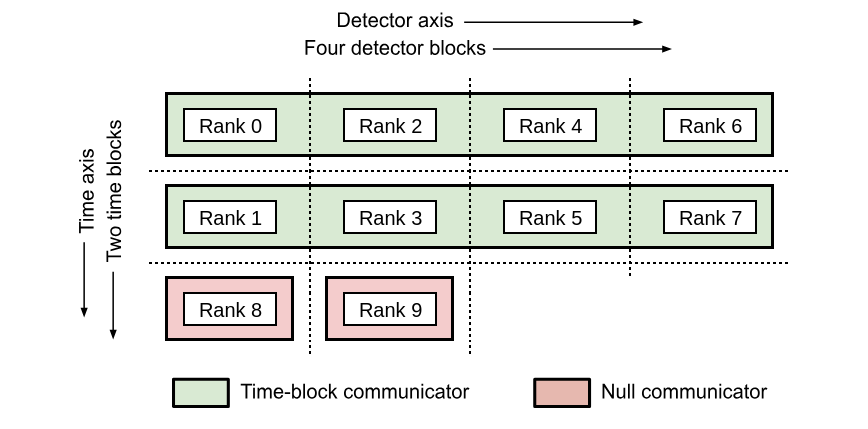

  • Time-block communicator: The time-block communicator is made by splitting the grid communicator into n_blocks_time sub-communicators, such that each sub-communicator contains the processes where TOD chunks of same time interval reside. This sub-communicator can be accessed with comm_time_block attribute of the Observation class. In the example below, the grid communicator is split into 2 time-block communicators containing the processes with global rank 0-2-4-6 and 1-3-5-7 respectively.

    _images/time_block_communicator.png

Other notable functionalities#

The starting time can be represented either as floating-point values (appropriate in 99% of the cases) or MJD; in the latter case, it is handled through the AstroPy library.

Instead of adding detector attributes after construction, you can pass a list of dictionaries (one entry for each detectors). One attribute is created for every key.

import litebird_sim as lbs
from astropy.time import Time

# Second case: use MJD to track the time
obs_mjd = lbs.Observation(
    detectors=[{"name": "A"}, {"name": "B"}],
    start_time_global=Time("2020-02-20", format="iso"),
    sampling_rate_hz=5.0,
    n_samples_global=5,
)

obs.name == np.array(["A", "B"])  # True

Obtain pointings#

The pointing information for one or more detectors in an observation are accessible through the get_pointings() which returns a tuple containing the pointing matrix of the detectors and the HWP angle. This call must be prepared calling either the method Observation.prepare_pointings() of this class or Simulation.prepare_pointings(), or the function litebird_sim.prepare_pointings()

The structure of the pointing matrix returned depends on the parameter detector_idx that specifies which detectors should be included in the computation. The following calls are all legitimate.

# All the detectors are included
pointings, hwp_angle = cur_obs.get_pointings("all")
# This returns ``(N_det, N_samples, 3)`` array

# Only the first two detectors are included
pointings, hwp_angle = cur_obs.get_pointings([0, 1])
# This returns ``(2, N_samples, 3)`` array

# Only the first detector is used
pointings, hwp_angle = cur_obs.get_pointings(0)
# This returns ``(N_samples, 3)`` array

# NB if a list of indices is passed an array of dimension ``(N_det, N_samples, 3)``
# is always returned
# For example this
pointings, hwp_angle = cur_obs.get_pointings([0])
# returns ``(1, N_samples, 3)`` array

The last dimension spans the three angles θ (colatitude, in radians), φ (longitude, in radians), and ψ (orientation angle, in radians). The HWP angle is always a vector with shape (N_samples,), as it does not depend on the list of detectors.

The method get_hwp_angle() allows to obtain only the HWP angle.

The function litebird_sim.precompute_pointings() precomputes all the pointings for a set of observations storing them in Observation.pointing_matrix and Observation.hwp_angle. See above for more details. The same result is achieved calling the method Observation.precompute_pointings().

Reading/writing observations to disk#

The framework implements a couple of functions to write/read Observation objects to disk, using the HDF5 file format. By default, each observation is saved in a separate HDF5 file; the following information are saved and restored:

  • Whether times are tracked as floating-point numbers or proper AstroPy dates;

  • The TOD matrix (in .tod);

  • The quaternions used to create the pointings.

  • Optionally, full pointings can be computed on the fly and stored in the files; this is useful if the TOD is supposed to be read by some other program.

  • Global and local flags saved in .global_flags and .local_flags (see below).

The function used to save observations is Simulation.write_observations(), which acts on a Simulation object; if you prefer to operate without a Simulation object, you can call write_list_of_observations().

To read observations, you can use Simulation.read_observations() and read_list_of_observations().

The framework writes one HDF5 file for each Observation; each file contains the following datasets:

  • One dataset per each TOD; each dataset has the same name as the ones passed to tods= in the call to create_observations. It has the following attributes:

    • use_mjd (Boolean): True if start_time is a MJD, False if it is a plain floating-point value

    • start_time (Float): the time of the first sample in the TOD, see also use_mjd to correctly interpret this

    • sampling_rate_hz (Float)

    • detectors (string): a JSON record containing basic information about the detectors

    • description (string): a human-readable string describing what’s in this TOD

  • global_flags: the matrix of the global flags for the observation

  • flags_NNNN`: the local flags for detector ``NNNN (starting from 0000). There are as many datasets of this kind as the number of detectors in this Observation object.

  • pointing_provider_rot_quaternion: the rotation quaternion that converts the boresight direction of the focal plane of the instrument into ecliptic coordinates. It is a matrix with shape (N, 4), and it has the attributes start_time (either a floating-point value or a string, the latter being used for astropy.time.Time types) and sampling_rate_hz.

  • pointing_provider_hwp: a dataset containing the details of the Half-Wave Plate. Its interprentation depends on the kind of HWP; for instances of the class IdealHWP, the dataset is empty and the only fields are the attributes class_name (always equal to IdealHWP), ang_speed_radpsec, and start_angle_rad (two floating-point numbers).

  • rot_quaternion_NNNN: the rotation quaternion for detector NNNN (starting from 0000). It has the same structure as pointing_provider_rot_quaternion (see above), and there are as many datasets of this kind as the number of detectors in this Observation object.

Flags#

The LiteBIRD Simulation Framework permits to associate flags with the scientific samples in a TOD. These flags are usually unsigned integer numbers that are treated like bitmasks that signal peculiarities in the data. They are especially useful when dealing with data that have been acquired by some real instrument to signal if the hardware was malfunctioning or if some disturbance was recorded by the detectors. Other possible applications are possible:

  1. Marking samples that should be left out of map-making (e.g., because a planet or some other transient source was being observed by the detector).

  2. Flagging potentially interesting observations that should be used in data analysis (e.g., observations of the Crab nebula that are considered good enough for polarization angle calibration).

Similarly to other frameworks like TOAST, the LiteBIRD Simulation Framework lets to store both «global» and «local» flags associated with the scientific samples in TODs. Global flags are associated with all the samples in an Observation, and they must be a vector of M elements, where M is the number of samples in the TOD. Local samples are stored in a matrix of shape N × M, where N is the number of detectors in the observation.

The framework encourages to store these flags in the fields local_flags and global_flags: in this way, they can be saved correctly in HDF5 files by functions like write_observations().

API reference#

class litebird_sim.observations.Observation(detectors: int | list[dict], n_samples_global: int, start_time_global: float | Time, sampling_rate_hz: float, allocate_tod=True, tods=None, det_blocks_attributes: list[str] | None = None, n_blocks_det=1, n_blocks_time=1, comm=None, root=0)#

Bases: object

An observation made by one or multiple detectors over some time window

After construction at least the following attributes are available

  • start_time()

  • n_detectors()

  • n_samples()

  • tod() 2D array (n_detectors by n_samples) stacking the times streams of the detectors.

A note for MPI-parallel application: unless specified, all the

variables are local. Should you need the global counterparts, 1) think twice, 2) append _global to the attribute name, like in the following:

Following the same philosophy, get_times() returns the time stamps of the local time interval

Parameters:

  • detectors (int or list[dict]) – Either the number of detectors or a list of dictionaries with one entry for each detector. The keys of the dictionaries become attributes of the observation. If a detector is missing a key it will be set to nan. If an MPI communicator is passed to comm, detectors is relevant only on the root process.

  • n_samples_global (int) – The total number of samples in this observation (global, before any MPI splitting in time).

  • start_time_global (float or astropy.time.Time) – Start time of the observation. It can either be an astropy.time.Time instance or a floating-point number. In the latter case, it must be expressed in seconds.

  • sampling_rate_hz (float) – Sampling frequency, in Hertz.

  • allocate_tod (bool, optional) – If True (default), allocate the TOD arrays described by tods. If False, the corresponding attributes are created but set to None. This can be useful for workflows that only need pointing or metadata.

  • tods (list[TodDescription] or None, optional) –

    List of TOD descriptors defining which TOD arrays should be attached to the observation. Each TodDescription specifies:

    • name: attribute name of the 2D array;

    • units: physical units as a Units item (e.g. Units.K_CMB);

    • dtype: NumPy dtype (e.g. numpy.float32);

    • description: human-readable description.

    If None, a single TOD named "tod" with units Units.K_CMB and dtype numpy.float32 is created.

  • det_blocks_attributes (list[str] or None, optional) – List of detector attributes used to divide the detector axis of the TOD (and all detector-attribute arrays). For example, with det_blocks_attributes = ["wafer", "pixel"], detectors are divided into blocks such that all detectors in a block share the same wafer and pixel attribute.

  • n_blocks_det (int, optional) – Number of blocks used to divide the detector axis of the TOD (and the arrays of detector attributes). Ignored if det_blocks_attributes is not None.

  • n_blocks_time (int, optional) – Number of blocks used to divide the time axis of the TOD. Ignored if det_blocks_attributes is not None.

  • comm (MPI communicator or None, optional) – Either None (do not use MPI) or an MPI communicator object, such as mpi4py.MPI.COMM_WORLD. Its size is required to be at least n_blocks_det * n_blocks_time.

  • root (int, optional) – Rank of the process receiving the detector list when detectors is a list of dictionaries; otherwise ignored.

blms: dict | None#
destriper_pixel_idx: ndarray[tuple[Any, ...], dtype[_ScalarT]] | None#
destriper_pol_angle_rad: ndarray[tuple[Any, ...], dtype[_ScalarT]] | None#
destriper_weights: ndarray[tuple[Any, ...], dtype[_ScalarT]] | None#
det_idx: ndarray[tuple[Any, ...], dtype[_ScalarT]]#
ellipticity: ndarray[tuple[Any, ...], dtype[_ScalarT]]#
fwhm_arcmin: ndarray[tuple[Any, ...], dtype[_ScalarT]]#
get_delta_time() → float | TimeDelta#

Return the time interval between two consecutive samples in this observation

Depending whether the field start_time of the Observation object is a float or a astropy.time.Time object, the return value is either a float (in seconds) or an instance of astropy.time.TimeDelta. See also get_time_span().

get_hwp_angle(hwp_buffer: ~numpy.ndarray[tuple[~typing.Any, ...], ~numpy.dtype[~numpy._typing._array_like._ScalarT]] | None = None, pointings_dtype=<class 'numpy.float64'>) → ndarray[tuple[Any, ...], dtype[_ScalarT]] | None#

Compute the Half-Wave Plate (HWP) angle for this observation.

This method triggers the time-domain computation of the HWP angle using the internally stored PointingProvider. It returns a NumPy array of shape (n_samples,) containing the HWP angle in radians for the entire duration of the observation.

If the observation does not include a Half-Wave Plate, the method returns None.

Parameters:

  • hwp_buffer (np.ndarray, optional) – Optional pre-allocated array of shape (n_samples,) in which to store the HWP angle values. If not provided, a new buffer will be allocated.

  • pointings_dtype (data-type, optional) – Data type to use when allocating the HWP buffer, if needed. Defaults to np.float64.

Returns:

The array containing the computed HWP angles (in radians), or None if no HWP is configured for the observation.

Return type:

np.ndarray or None

Raises:

AssertionError – If the pointing_provider has not been initialized (e.g., prepare_pointings() has not been called), or if the provided hwp_buffer does not match the expected shape.

Example

hwp_angle = obs.get_hwp_angle() hwp_angle.shape -> (obs.n_samples,)

get_pointings(detector_idx: int | list[int] | str = 'all', pointing_buffer: ~numpy.ndarray[tuple[~typing.Any, ...], ~numpy.dtype[~numpy._typing._array_like._ScalarT]] | None = None, hwp_buffer: ~numpy.ndarray[tuple[~typing.Any, ...], ~numpy.dtype[~numpy._typing._array_like._ScalarT]] | None = None, pointings_dtype=<class 'numpy.float64'>, nside_centering: int | None = None, nthreads: int | None = None) → tuple[ndarray[tuple[Any, ...], dtype[_ScalarT]], ndarray[tuple[Any, ...], dtype[_ScalarT]] | None]#

Compute the pointings for one or more detectors in this observation

This method triggers the computation of the matrix of pointings that indicate the direction of the line of sight for each sample in the TOD of the current Observation instance. You must call either prepare_pointings() or Simulation.prepare_pointings() before invoking this method.

The parameter detector_idx specifies which detectors should be included in the computation. Use "all" to ask for the pointings of all the detectors in this Observation; if you just want a subset of them, pass a list with their zero-based index; if you just want the pointings for one detector, you can pass an integer. The following calls are all legitimate:

# All the detectors are included
pointings, hwp_angle = cur_obs.get_pointings("all")
# This returns ``(N_det, N_samples, 3)`` array

# Only the first two detectors are included
pointings, hwp_angle = cur_obs.get_pointings([0, 1])
# This returns ``(2, N_samples, 3)`` array

# Only the first detector is used
pointings, hwp_angle = cur_obs.get_pointings(0)
# This returns ``(N_samples, 3)`` array

# NB if a list of indices is passed an array of dimension ``(N_det, N_samples, 3)``
# is always returned
# For example this
pointings, hwp_angle = cur_obs.get_pointings([0])
# returns ``(1, N_samples, 3)`` array

The return value is a pair containing (1) the pointing matrix and (2) the HWP angle. The pointing matrix is a NumPy array with shape (N_det, N_samples, 3), where N_det` is the number of detectors and ``N_samples is the number of samples in the TOD (the field Observation.n_samples). The last dimension spans the three angles θ (colatitude, in radians), φ (longitude, in radians), and ψ (orientation angle, in radians). Important: if you ask for just one detector passing the index of the detector, the shape of the pointing matrix will always be (N_samples, 3). The pointings can be aligned to the center of the HEALPix pixel setting nside_centering to the nside of an HEALPix map. The HWP angle is always a vector with shape (N_samples,), as it does not depend on the list of detectors.

The return value is allocated internally by the method. If you instead want to pass a pre-allocated structure, you can use the pointing_buffer and hwp_buffer parameters. In this case, the return value will be always equal to (pointing_buffer, hwp_buffer).

get_time_span() → float | TimeDelta#

Return the temporal length of the current observation

This method can either return a float (in seconds) or a astropy.time.TimeDelta object, depending whether the field start_time of the Observation object is a float or a astropy.time.Time instance. See also get_delta_time().

get_times(normalize=False, astropy_times=False)#

Return a vector containing the time of each sample in the observation

The measure unit of the result depends on the value of astropy_times: if it’s true, times are returned as astropy.time.Time objects, which can be converted to several units (MJD, seconds, etc.); if astropy_times is false (the default), times are expressed in seconds. In the latter case, you should interpret these times as sidereal.

If normalize=True, then the first time is zero. Setting this flag requires that astropy_times=False.

This can be a costly operation; you should cache this result if you plan to use it in your code, instead of calling this method over and over again.

Note for MPI-parallel codes: the times returned are only those of the local portion of the data. This means that

  • the size of the returned array is n_samples, smaller than n_samples_global whenever there is more than one time-block

  • self.tod * self.get_times() is a meaningless but always allowed operation

jones_hwp: list#
local_flags: ndarray[tuple[Any, ...], dtype[_ScalarT]] | None#
mueller_hwp: ndarray[tuple[Any, ...], dtype[_ScalarT]]#
property n_blocks_det#
property n_blocks_time#
property n_detectors#
property n_detectors_global#

Total number of detectors in the observation

If you need the number of detectors in the local TOD block self.tod, use either n_detectors or self.tod.shape[0].

property n_samples_global#

Samples in the whole observation

If you need the time-lenght of the local TOD block self.tod, use either n_samples or self.tod.shape[1].

name: list#
net_ukrts: int | float | ndarray[tuple[Any, ...], dtype[_ScalarT]]#
pol_angle_rad: ndarray[tuple[Any, ...], dtype[_ScalarT]]#
precompute_pointings(pointings_dtype=<class 'numpy.float64'>) → None#

Precompute and store the full pointing matrix and HWP angles for this observation.

This method computes the time-domain pointing angles (θ, φ, ψ) and, if applicable, HWP angles for all detectors in the current observation. The results are stored in the fields self.pointing_matrix and self.hwp_angle.

This is typically used to cache the pointings when running in a mode that avoids on-the-fly computation.

Parameters:

pointings_dtype (data-type, optional) – Data type to use for the computed arrays. Defaults to np.float64.

Raises:

AssertionError – If prepare_pointings() has not been called prior to this method, i.e., if self.pointing_provider is not defined.

Notes

This method must be called after prepare_pointings().

prepare_pointings(instrument: InstrumentInfo, spin2ecliptic_quats: RotQuaternion, hwp: HWP | None = None, maximum_internal_buffer_mem_mb: float = 256.0) → None#

Prepare quaternion-based pointing and HWP information for this observation.

This method initializes the PointingProvider used to compute time-dependent detector pointing angles (θ, φ, ψ) and, optionally, HWP angles. It combines the global spin-to-Ecliptic quaternions with the instrument’s internal boresight-to-spin rotation to produce a final boresight-to-Ecliptic quaternion, which is stored internally.

If a Half-Wave Plate (HWP) model is provided, it is attached to the pointing provider and its Mueller matrix is applied to all detectors that do not already have one assigned. If no HWP is passed, all detectors must already define their own Mueller matrices.

Parameters:

  • instrument (InstrumentInfo) – The instrument definition containing the boresight-to-spin rotation.

  • spin2ecliptic_quats (RotQuaternion) – Time-dependent rotation from the spin frame to the Ecliptic frame. Typically generated using ScanningStrategy.generate_spin2ecl_quaternions().

  • hwp (HWP | None) – Optional HWP model. If provided, it is stored and its Mueller matrix applied to all detectors lacking one.

  • maximum_internal_buffer_mem_mb (float) – Maximum number of megabytes (MB) to allocate for internal buffers during the computation of pointings. Set to -1 to remove any limit.

Raises:

AssertionError – If hwp is not provided and one or more detectors do not have a pre-assigned Mueller matrix.

Notes

After calling this method, the observation becomes ready to compute pointings via get_pointings() or get_hwp_angle() using its internal PointingProvider.

psi_rad: ndarray[tuple[Any, ...], dtype[_ScalarT]]#
quat: list#
property sampling_rate_hz#
set_hwp(hwp)#
set_n_blocks(n_blocks_det=1, n_blocks_time=1)#

Change the number of blocks

Parameters:

  • n_blocks_det (int) – new number of blocks in the detector direction

  • n_blocks_time (int) – new number of blocks in the time direction

setattr_det(name, info)#

Add a piece of information about the detectors

Store info as the attribute name of the observation. The difference with respect to self.name = info, relevant only in MPI programs, are

  • info is assumed to contain a number of elements equal to self.tod.shape[0] and to have the same order (info[i] is a property of self.tod[i])

  • When changing n_blocks_det, set_n_blocks() is aware of name and will redistribute info in such a way that self.name[i] is a property of self.tod[i] in the new block distribution

Parameters:

  • name (str) – Name of the detector information

  • info (array) – Information to be stored in the attribute name. The array must contain one entry for each local detector.

setattr_det_global(name, info, root=0)#

Add a piece of information on the detectors

Variant of setattr_det() to be used when the information comes from a single MPI rank (root). In particular,

  • In the root process, info is required to have n_detectors_global elements (not self.tod.shape[1]). For other processes info is irrelevant

  • info is scattered from the root rank to the relevant processes in self.comm so that self.name will have self.tod.shape[0] elements on all the processes and self.name[i] is a property of self.tod[i]

  • When changing n_blocks_det, set_n_blocks() is aware of name and will redistribute info in such a way that self.name[i] is a property of self.tod[i] in the new block distribution

Parameters:

  • name (str) – Name of the information

  • info (array) – Array containing n_detectors_global entries. Relevant only for thr root process

  • root (int) – Rank of the root process

sky: HealpixMap | dict[str, HealpixMap | SkyGenerationParams] | SphericalHarmonics | dict[str, SphericalHarmonics | SkyGenerationParams] | None#
tod: ndarray[tuple[Any, ...], dtype[_ScalarT]]#
wafer: str | None#
class litebird_sim.observations.TodDescription(name: str, units: Units, dtype: Any, description: str)#

Bases: object

A compact descriptor for a Time-Ordered Data (TOD) field stored in an Observation object.

This field is used to pass information about one TOD in a Observation object. It is mainly used by the method Simulation.create_observation() to figure out how much memory allocate and how to organize it.

The class contains three fields:

Parameters:

  • name (str) – Name of the attribute created inside each Observation instance.

  • units (Units) – Physical units of the TOD, expressed as an item of Units.

  • dtype (Any) – NumPy dtype used for allocating the underlying array, e.g., numpy.float32

  • description (str) – Human-readable description of the TOD field.

Notes

This class only describes the TOD. Actual memory allocation is performed by Simulation.create_observations() based on the list of provided descriptors.

description: str#
dtype: Any#
name: str#
units: Units#
class litebird_sim.io.DetectorJSONEncoder(*, skipkeys=False, ensure_ascii=True, check_circular=True, allow_nan=True, sort_keys=False, indent=None, separators=None, default=None)#

Bases: JSONEncoder

default(o)#

Implement this method in a subclass such that it returns a serializable object for o, or calls the base implementation (to raise a TypeError).

For example, to support arbitrary iterators, you could implement default like this:

def default(self, o):
    try:
        iterable = iter(o)
    except TypeError:
        pass
    else:
        return list(iterable)
    # Let the base class default method raise the TypeError
    return super().default(o)
litebird_sim.io.read_list_of_observations(file_name_list: list[str | ~pathlib.Path], tod_dtype=<class 'numpy.float32'>, limit_mpi_rank: bool = True, tod_fields: list[str | ~litebird_sim.observations.TodDescription] = ['tod']) → list[Observation]#

Read a list of HDF5 files containing TODs and return a list of observations

The function reads all the HDF5 files listed in file_name_list (either a list of strings or pathlib.Path objects) and assigns them to the various MPI processes that are currently running, provided that limit_mpi_rank is True; otherwise, all the files are read by the current process and returned in a list. By default, only the tod field is loaded; if the HDF5 file contains multiple TODs, you must load each of them.

When using MPI, the observations are distributed among the MPI processes using the same layout that was used to save them; this means that you are forced to use the same number of processes you used when saving the files. This number is saved in the attribute mpi_size in each of the HDF5 files.

If the HDF5 file contains more than one TOD, e.g., foregrounds, dipole, noise…, you can specify which datasets to load with tod_fields (a list of strings or TodDescription objects). When passing TodDescription instances, only the name is used to select the dataset; dtype, units, and description are taken from the HDF5 attributes when present. Each dataset is initialized as a member field of the Observation class, like Observation.tod.

litebird_sim.io.read_one_observation(path: str | ~pathlib.Path, limit_mpi_rank=True, tod_dtype=<class 'numpy.float32'>, read_quaternions_if_present=True, read_global_flags_if_present=True, read_local_flags_if_present=True, tod_fields: list[str] = ['tod']) → Observation | None#

Read one Observation object from a HDF5 file.

This is a low-level function that is wrapped by read_list_of_observations() and read_observations(). It returns a Observation object filled with the data read from the HDF5 file pointed by path.

If limit_mpi_rank is True (the default), the function makes sure that the rank of the MPI process reading this file is the same as the rank of the process that originally wrote it.

The flags tod_dtype permits to override the data type of TOD samples used in the HDF5 file.

The parameters read_global_flags_if_present, and read_local_flags_if_present permit to avoid loading some parts of the HDF5 if they are not needed.

The parameter tod_fields specifies which TOD datasets to load. It can be a list of strings (dataset names) or TodDescription objects; in the latter case, only the name is used to find the dataset, while dtype, units, and description are read from the file when present.

The function returns a Observation, or Nothing if the HDF5 file was ill-formed.

litebird_sim.io.read_pointing_provider_from_hdf5(input_file: File, field_name: str) → PointingProvider#
litebird_sim.io.read_rot_quaternion_from_hdf5(input_file: File, field_name: str) → RotQuaternion#
litebird_sim.io.write_list_of_observations(observations: ~litebird_sim.observations.Observation | list[~litebird_sim.observations.Observation], path: str | ~pathlib.Path, tod_dtype=<class 'numpy.float32'>, pointings_dtype=<class 'numpy.float64'>, file_name_mask: str = 'litebird_tod{global_index:04d}.h5', custom_placeholders: list[dict[str, ~typing.Any]] | None = None, start_index: int = 0, collective_mpi_call: bool = True, tod_fields: list[str | ~litebird_sim.observations.TodDescription] = [], gzip_compression: bool = False, write_full_pointings: bool = False) → list[Path]#

Save a list of observations in a set of HDF5 files

This function takes one or more observations and saves the TODs in several HDF5 (each observation leads to one file), using tod_dtype and pointings_dtype as the default datatypes for the samples and the pointing angles. The function returns a list of the file written (pathlib.Path objects).

By default, this function only saves the TODs and the quaternions necessary to compute the pointings; if you want the full pointing information, i.e., the angles θ (colatitude), φ (longitude), ψ (orientation) and α (HWP angle), you must set write_full_pointings to True.

The name of the HDF5 files is built using the variable file_name_mask, which can contain placeholders in the form {name}, where name can be one of the following keys:

  • mpi_rank: the rank number of the MPI process that owns this observation (starting from zero)

  • mpi_size: the number of running MPI processes

  • num_of_obs: the number of observations

  • global_index: an unique increasing index identifying this observation among all the observations used by MPI processes (see below)

  • local_index: the number of the current observation within the current MPI process (see below)

You can provide other placeholders through custom_placeholders, which must be a list of dictionaries. The number of elements in the list must be the same as the number of observations, and each dictionary will be used to determine the placeholders for the file name related to the corresponding observation. Here is an example:

custom_dicts = [
    { "myvalue": "A" },
    { "myvalue": "B" },
]

write_list_of_observations(
    observations=[obs1, obs2],  # Write two observations
    path=".",
    file_name_mask="tod_{myvalue}.h5",
    custom_placeholders=custom_dicts,
)

# The two observations will be saved in
# - tod_A.h5
# - tod_B.h5

If the parameter collective_mpi_call is True and MPI is enabled (see litebird_sim.MPI_ENABLED), the code assumes that this function was called at the same time by all the MPI processes that are currently running. This is the most typical case, i.e., you have several MPI processes and want that each of them save their observations in HDF5 files. Pass collective_mpi_call=False only if you are calling this function on some of the MPI processes. Here is an example:

if lbs.MPI_COMM_WORLD.rank == 0:
    # Do this only for the first MPI process
    write_list_of_observations(
        ...,
        collective_mpi_call=False,
    )

In the example, collective_mpi_call=False signals that not every MPI process is writing their observations to disk.

The local_index and global_index placeholders used in the template file name start from zero, but this can be changed using the parameter start_index.

If observations contain more than one timeline in separate fields (e.g., foregrounds, dipole, noise…), you can specify the names of the fields using the parameter tod_fields (list of strings or TodDescription objects), which by default will only save Observation.tod.

To save disk space, you can choose to apply GZip compression to the data frames in each HDF5 file (the file will still be a valid .h5 file).

litebird_sim.io.write_one_observation(output_file: File, obs: Observation, tod_dtype, pointings_dtype, global_index: int, local_index: int, tod_fields: list[str | TodDescription] | None = None, gzip_compression: bool = False, write_full_pointings: bool = False)#

Write one Observation object in a HDF5 file.

This is a low-level function that stores a TOD in a HDF5 file. You should usually use more high-level functions that are able to write several observations at once, like write_list_of_observations() and write_observations().

By default, this function only saves the TODs and the quaternions necessary to compute the pointings; if you want the full pointing information, i.e., the angles θ (colatitude), φ (longitude), ψ (orientation) and α (HWP angle), you must set write_full_pointings to True.

The output file is specified by output_file and should be opened for writing; the observation to be written is passed through the observations parameter. The data type to use for writing TODs and pointings is specified in the tod_dtype and pointings_dtype (it can either be a NumPy type like numpy.float64 or a string, pass None to use the same type as the one used in the observation). Note that quaternions are always saved using 64-bit floating point numbers.

The global_index and local_index parameters are two integers that are used by high-level functions like write_observations() to understand how to read several HDF5 files at once; if you do not need them, you can pass 0 to both.

litebird_sim.io.write_pointing_provider_to_hdf5(output_file: File, field_name: str, pointing_provider: PointingProvider, compression: str | None)#
litebird_sim.io.write_rot_quaternion_to_hdf5(output_file: File, rot_matrix: RotQuaternion, field_name: str, compression: str | None) → Dataset#
On this page
Show Source
